Watch a Linux, Mac or Windows server

The Monitor tab shows what a Linux, Mac or Windows server is doing: CPU, memory, disks, processes and the ports it listens on. You can also stop a process.

Steps

  1. Connect to the server.
  2. Click the Monitor tab.
  3. Read the figures. They refresh every 3 seconds while the tab is on screen.

The top of the window shows the server’s CPU, memory and main disk on every tab, refreshed every 10 seconds. It isn’t there for other servers (BSD).

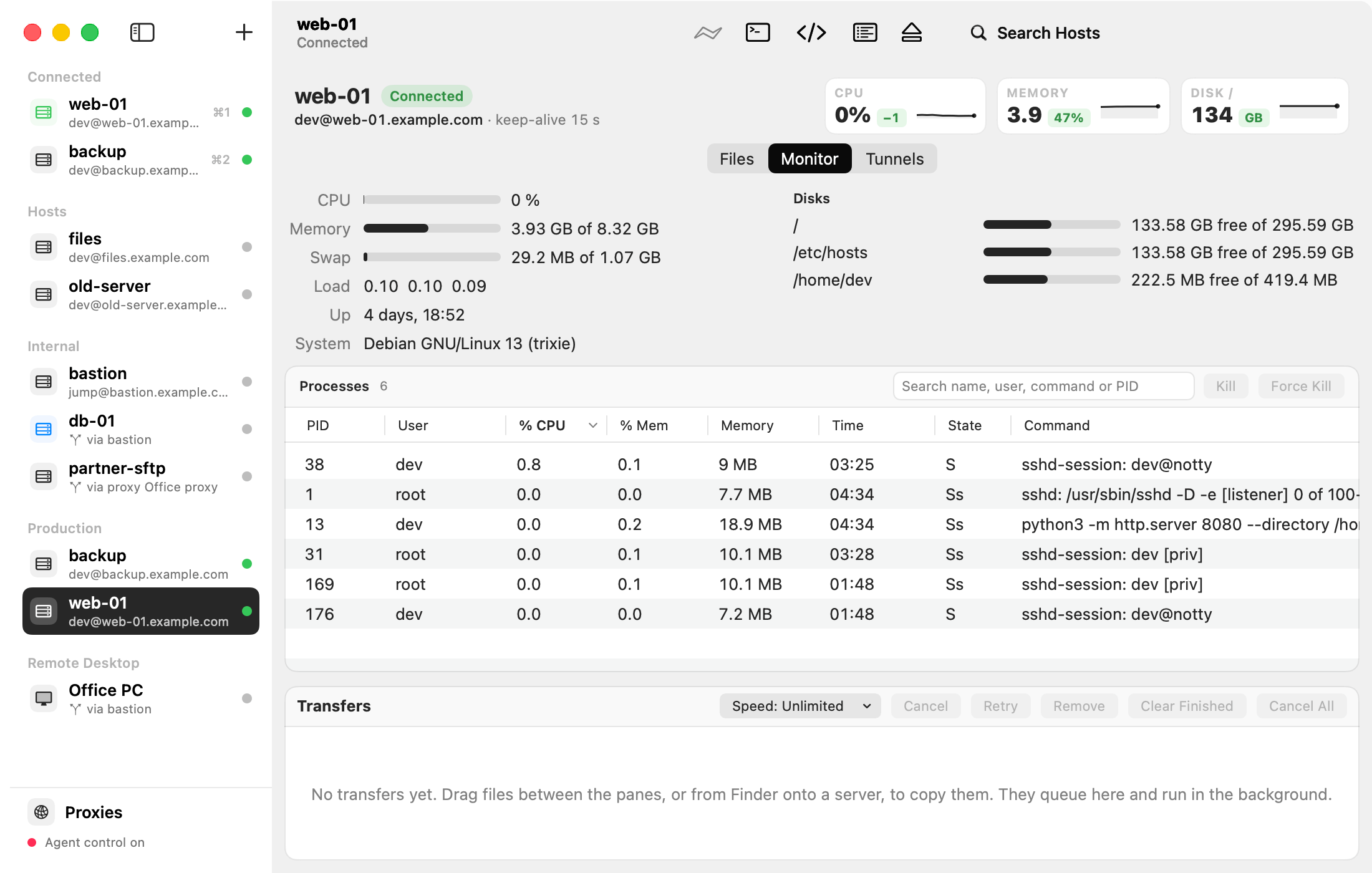

The Monitor tab: CPU, memory, swap, load, uptime, disks and the list of processes
Part What it shows
CPU How busy the processors are, since the last refresh.
Memory and Swap Used and total.
Load The load averages for 1, 5 and 15 minutes (not on Windows, which has none).
Up How long the server has run since it started.
System The server’s operating system.
Disks Free space on each file system, with a bar.
Processes Every process with its PID, user, CPU, memory, time, state and command.

Stop a process

  1. Type its name, user, command or PID in the search field above the list.
  2. Select it and click Kill (asks the process to quit) or Force Kill (stops it at once).
  3. AirSCP asks first. Click Kill again to confirm.

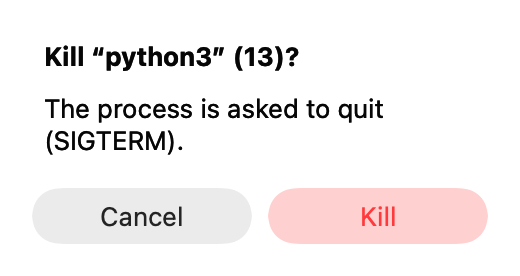

The question: Kill python3? The process is asked to quit

See which ports a server listens on

Ports are listed on Linux and Windows servers.

  1. In the Monitor tab, click Ports above the list of processes.
  2. Read the list: each port the server listens on, with the program that listens and how many connections it has.
  3. Click a port to see who is connected to it, and how many connections come from each address.
Ports: the ports web-01 listens on, and the connections to its website on port 8080
Part What it shows
Protocol TCP or UDP.
Address Where the port can be reached. 0.0.0.0 and :: mean every address of the server (open to the network); 127.0.0.1 and ::1 mean only the server itself.
PID and Process The program that listens (+1: one more process shares the port). A dash means another user’s program: connect as root to see it.
User The account the port belongs to.
Connections How many connections are open to it. UDP has no connections.

To stop the program that has a port, select the port and click Kill or Force Kill. Show Process shows the program in the list of processes.

Tips

  • Click a column heading to sort the processes, for example by CPU.
  • Kill uses your account’s rights. When your account may not stop a process, AirSCP offers Kill with sudo in Terminal, where sudo can ask for your password (on servers that have sudo).
  • On Windows, Kill and Force Kill both stop the process at once. Kill stops only your own processes; Force Kill also stops other users’ processes when your account is an administrator.
  • On Windows, AirSCP reads the figures with PowerShell, which takes about a second each time (about three with Ports). The User column is empty unless your account is an administrator.
  • The list of processes isn’t read while the tab isn’t shown. The figures at the top of the window still refresh every 10 seconds.
  • Reading the ports takes some work on the server, so AirSCP reads them only while Ports is shown: at once, then every 5 seconds. Click Pause to keep the list as it is, and Refresh to read it again now.
  • Type a port, program or address in the search field above the ports to see only those.
  • Right-click a port, or a connection, to copy its address.

If something goes wrong

  • “The system monitor works only on Linux, macOS and Windows servers”: BSD servers aren’t supported. The Files and Tunnels tabs work as usual.
  • On a Mac, the disks are the Data volume (where your files are) and the disks under /Volumes.
  • “This account allows file transfers (sftp) only”: AirSCP can’t read the system there. The Files tab works.
  • On BusyBox systems (Alpine), processes show no CPU figure.
